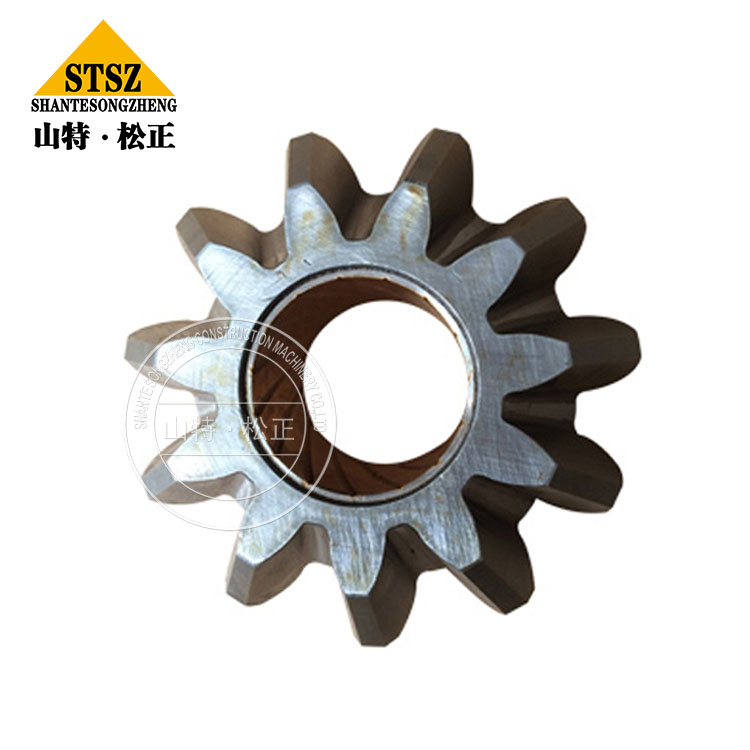

适用于特雷克斯TEREX矿用自卸车TR60配件差速器齿轮9005259原厂原装
| 1 | 9019216 | GUARD |
| 2 | 9019217 | GUARD |
| 3 | 9270000 | WASHER-HARDENED |
| 4 | 9413403 | RING-SNAP |
| 5 | 431715 | VALVE |
| 6 | 9411010 | FITTING-GREASE |
| 7 | 9014737 | PIN-ANCHOR |
| 8 | 274770 | RING-SNAP |
| 9 | 9018946 | BUSHING |
| 10 | 9018858 | SHAFT-CAM |
| 11 | 9012956 | SEAL |
| 12 | 9012957 | WASHER |
| 13 | 9062516 | CAM |
| 14 | 9014738 | SPRING RETURN |
| 15 | 9013132 | SEAL |
| 16 | 9079094 | SHOE ASSY |
| 17 | 9018900 | CAM-ROLLER |
| 18 | 9014735 | PIN |
| 19 | 9014730 | BEARING |
| 20 | 9128555 | PLUG |
| 21 | 114676 | SCREW |
| 22 | 114677 | SCREW |
| 23 | 9422277 | NUT |
| 24 | 9014790 | DRUM |
| 25 | 223457 | BOLT |
| 26 | 9011226 | WASHER |
| 27 | 223435 | BOLT |
| 28 | 103331 | LOCK WASHER |
| 29 | 9411019 | NIPPLE-GREASE |
| REAR WHEEL SLACK ADJUSTER | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9261914 | ADJUSTER ASSY |
| 2 | 9411010 | FITTING-GREASE |
| 3 | 9024901 | WORM |
| 4 | 9033031 | SHART |
| 5 | 9051291 | BUSHING |
| REAR AXLE RIDE CYLINDER | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9079544 | REAR RIDE CYLINDER |
| 2 | 9079543 | ROD ASSY PISTON |
| 3 | 9167506 | BEARING |
| 4 | 9425517 | RING-SNAP |
| 5 | 9411010 | FITTING-GREASE |
| 6 | 9068666 | WASHER-HARDENED |
| 7 | 9013688 | VALVE-CHECK |
| 8 | 444613 | PLUG |
| 9 | 169162 | BALL |
| 10 | 9256606 | WIPER |
| 11 | 9411019 | NIPPLE-GREASE |
| 12 | 15233756 | SEAL |
| 13 | 223464 | BOLT |
| 14 | 9036867 | RING-BACKUP |
| 15 | 9169669 | O RING |
| 16 | 9014093 | RING-WEAR |
| 17 | 9079450 | PISTON |
| 18 | 9068667 | BOLT |
| 19 | 9013015 | TUBE ASSEMBLY |
| 20 | 9167506 | BEARING |
| 21 | 9425517 | RING-SNAP |
| 22 | 6525035 | VALVE ASSY-RECHARGE |
| 23 | 9030336 | RING-LARGE |
| 24 | 9034883 | CORE |
| 25 | 179837 | BOLT |
| 26 | 9384148 | BOOT ASSY |
| 27 | 9384150 | PLATE |
| 28 | 9139820 | CLAMP |
| REAR WHEEL ROCK EJECTOR | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15011203 | EJECTOR-ROCK |
| 2 | 15228120 | SPACER |
| FRONT WHEEL, RIM AND TYPE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9252445 | GASKET |
| 2 | 9016987 | SEAL |
| 3 | 9016986 | WASHER |
| 4 | 456473 | CONE |
| 5 | 7450645 | CUP |
| 6 | 9253451 | WHEEL |
| 7 | 9178785 | O RING |
| 8 | 9384210 | STEM-VALVE |
| 9 | 9209216 | SPUD |
| 10 | 9116292 | CAP |
| 11 | 15229543 | FLANGE |
| 12 | 15229542 | BASE-RIM |
| 13 | 15229545 | BAND-BEAD SEAT |
| 14 | 15229544 | LOCK RING |
| 15 | 9433271 | CUP-OUTER BEARING |
| 16 | 9433270 | CONE-OUTER BEARING |
| 17 | 9016968 | WASHER |
| 18 | 9016970 | NUT |
| 19 | 179097 | PIN-COTTER |
| 20 | 9015357 | COVER |
| 21 | 179881 | BOLT |
| 22 | 103329 | LOCK WASHER |
| 23 | 9433576 | NUT |
| 24 | 9253468 | STUD |
| 25 | 15023746 | CLAMP |
